Pipe & tube rail specs
BMC 2 Line Rails
OSHA Compliant
- Specifications (.pdf)
- Specifications (.doc)
- Standard Rail Details (.pdf)
- Standard Rail Details (.dwg)
BMC 3 Line Rails
OSHA Compliant
- Specifications (.pdf)
- Specifications (.doc)
- Standard Rail Details (.pdf)
- Standard Rail Details (.dwg)
BMC Spindle Rails
IBC Compliant
- Specifications (.pdf)
- Specifications (.doc)
- Standard Rail Details (.pdf)
- Standard Rail Details (.dwg)
Unmatched stainless steel components

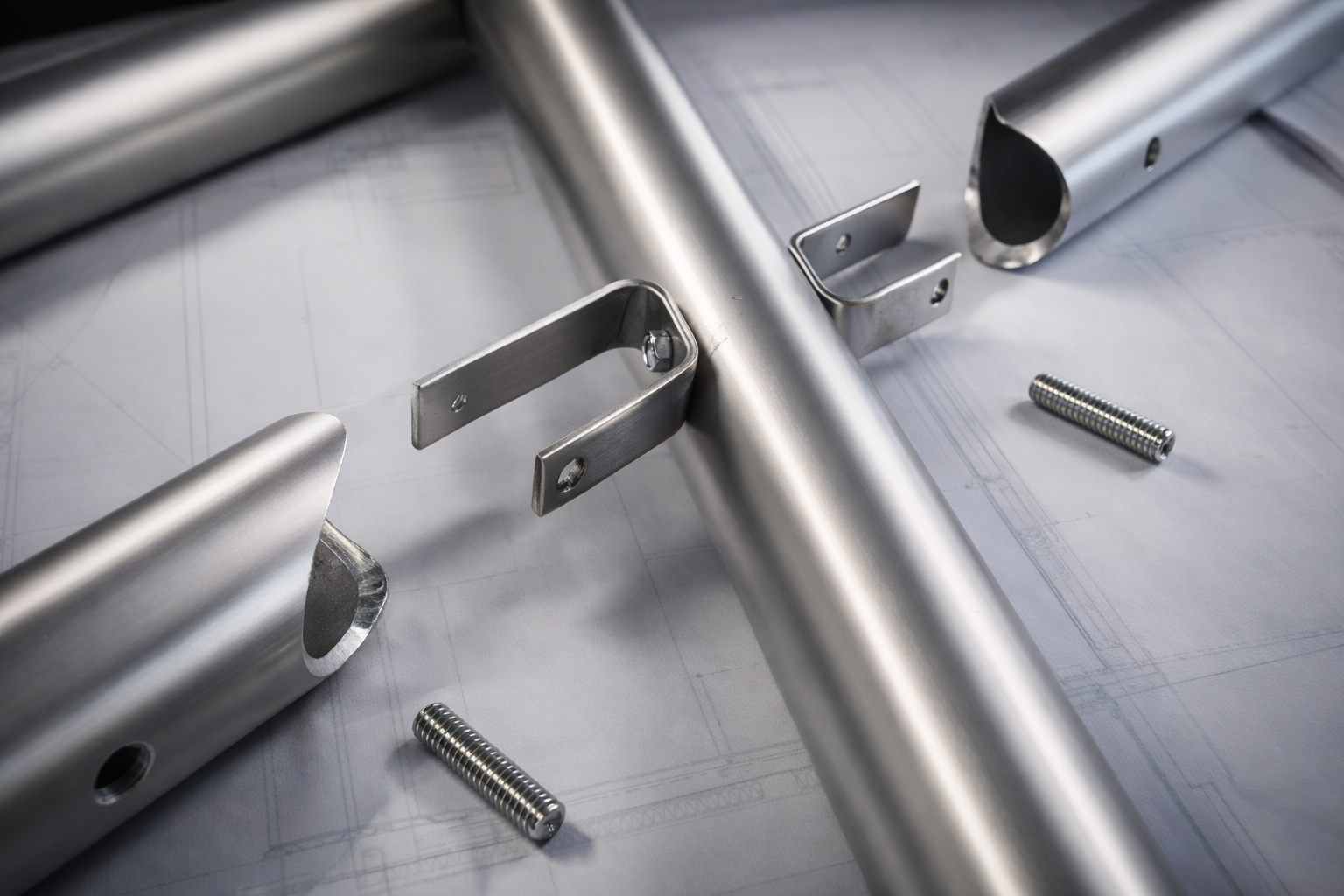

Constructed from 6005-T5 SCH 40 aluminum alloy pipe with SCH 80 posts and spaced not more than 5′ on center. BMC railing is unique in the industry due to the use of 304 stainless steel flanges. Stronger than aluminum and noncorrosive, they are polished to a #4 brushed finish to provide an attractive appearance.
- Custom-designed and assembled for fast and accurate installation on sloped, curved, or straight run surfaces.
- No extra charges for retooling as the product is fabricated to fit your needs.
Competitive benefits
- Meets or exceeds OSHA and local building code requirements
- Powder coat finishes available
- Protected during shipping, storage, and installation
- Railings withstand the effect of gravity loads, following loads, and stresses within limits under the below conditions:
- Handrails & top rails of guardrail system:
- Uniform load of 50lbf/ft. applied in any direction
- Concentrated load of 200lbf/ft. applied in any direction
- Uniform and concentrated loads need no be assumed to act concurrently
- Infill area of guardrail system:
- Concentrated load of 50lbf applied horizontally on area of 1sq.ft.
- Uniform load of 20lbf applied horizontally
- Infill load and other loads need not be assumed
- Handrails & top rails of guardrail system:
- Uniform load of 50lbf/ft. applied in any direction
- Concentrated load of 200lbf/ft. applied in any direction
- Uniform and concentrated loads need no be assumed to act concurrently
- Infill area of guardrail system:
- Concentrated load of 50lbf applied horizontally on area of 1sq.ft.
- Uniform load of 20lbf applied horizontally
- Infill load and other loads need not be assumed
Field-tested dimensions for a perfect fit
A simplified guardrail system
- Strong stainless steel fasteners
- Mountable to almost any surface
- Shipped installation ready
